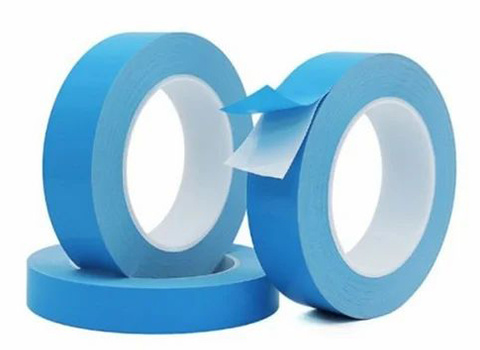

Thermally Conductive Tape
Product number:0169
- Jumbo roll size : 1240x500m
- MOQ: 4000 square meters
- Payment Terms : T/T or Alibaba pay
- Delivery Port : Xiaolan or Zhongshan port
- Details
-
Product Description
Description：This product series use fiber glass as the carrier and modified acrylic adhesive is evenly coated on both sidesAnd then laminated with blue PE film.
Application：Widely used in electrical appliances, Led lighting, flexible printed circuit board and high-power transistors, heat sinks and other cooling devices bonding and heat conduction.Product Features
High thermal conductivity and good insulativity
Good compressibility and strong bonding strength for curve,rough surface
Parameter TableModel Carrier Release Liner Tape Thickness Peeling Force Holding Power Temp.Resistance TC150 100u Fiber Glass 60u Blue PE Film 150u ≥14N/25mm ≥48H/1kg 120℃ TC200 100u Fiber Glass 60u Blue PE Film 200u ≥16N/25mm ≥48H/1kg 120℃ TC300 100u Fiber Glass 60u Blue PE Film 300u ≥18N/25mm ≥48H/1kg 120℃ Application

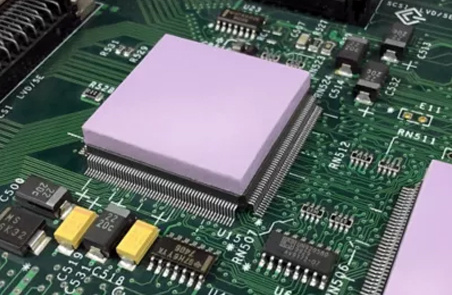

Circuit Board Bonding And Heat Conduction

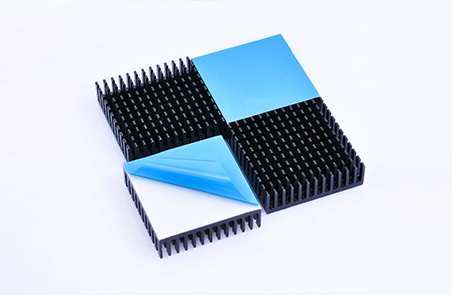

Heat Sink Fixation And Heat Dissipation

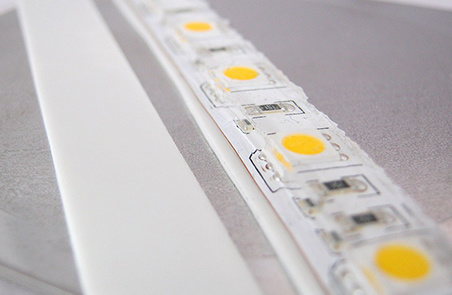

Led Light Bonding And Heat Conduction
Keywords:- Thermally Conductive Tape
- double sided thermal conductive tape
- Fiberglass thermal conductive adhesive tape
- thermal conductive double sided tape
